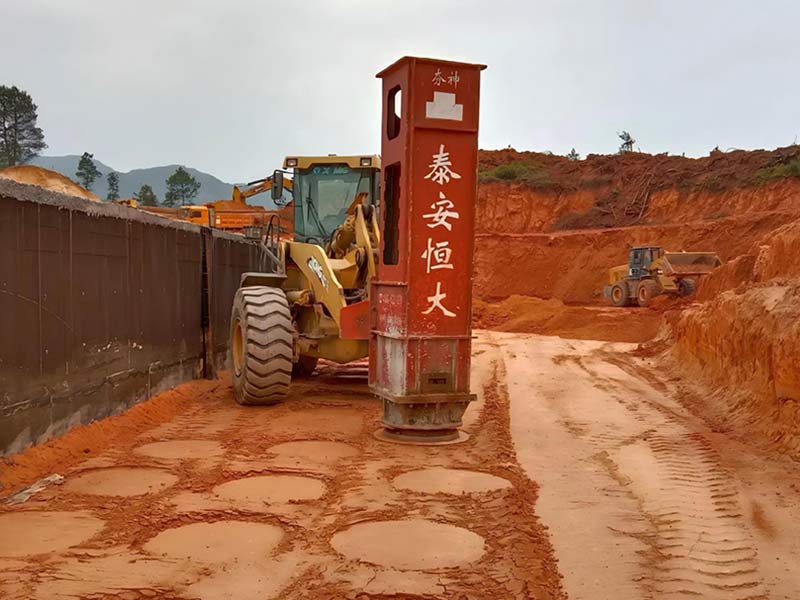

HC42

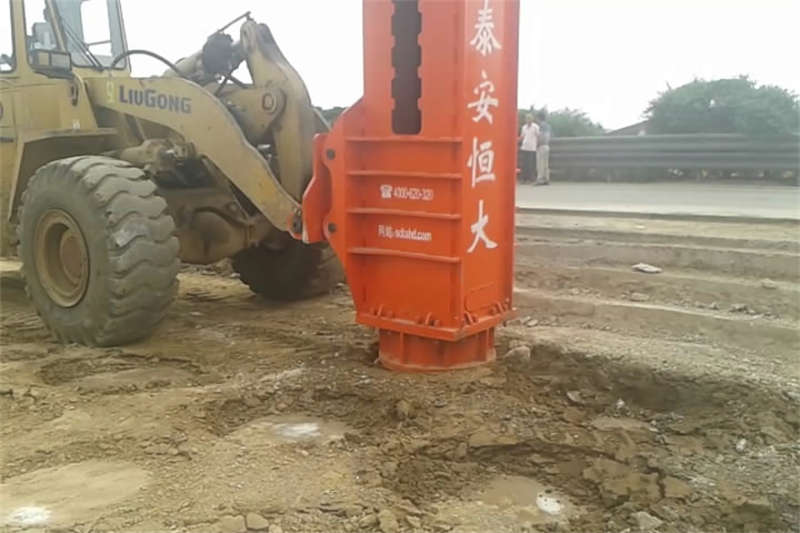

HC42 Compactor
42 kJ Impact Energy
Depth: 1.2–2.5 m
Weight: 3.5 t
Mounted with: loader
HC Series hydraulic impact compactors — engineered for highways, airports, ports and industrial foundations across the world. Trusted by contractors in 10+ countries.

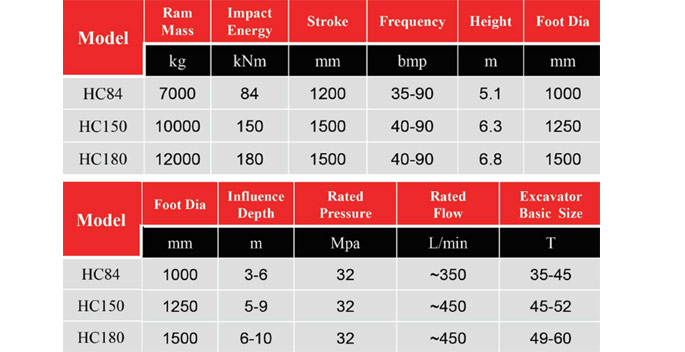

Compare all models across key performance indicators to select the right compactor for your project requirements.

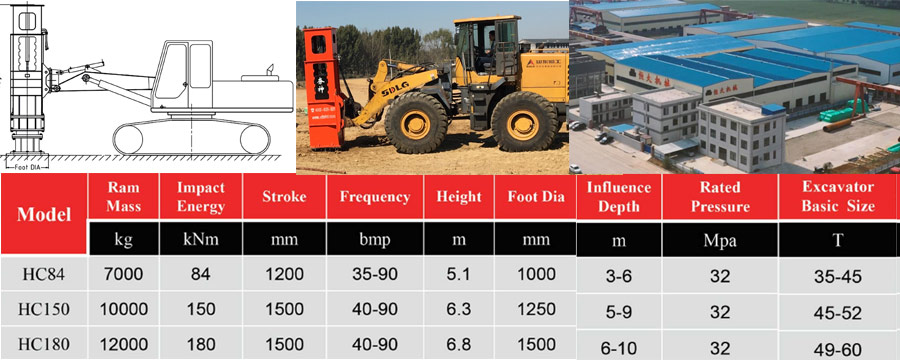

| Model | Impact Energy (kJ) |
Drop Weight (T) |
Compaction Depth (m) |
Total Weight (t) |
Plate Dia. (mm) |
Working Pressure (MPa) |
Working Flow (L/min) |
Frequency (bpm) |
Suitable Excavator |
|---|---|---|---|---|---|---|---|---|---|
| HC42 | 42 | 3.5 | 1.2–2.5 | 6.3 | 1000 | 16 | 160 | 30–80 | 30 t |
| HC60 | 60 | 5 | 2.5–6.5 | 10.8 | 1250 | 25 | 350 | 30–80 | 35-40t |
| HC84 | 84 | 7 | 2.5–6.5 | 13.5 | 1250 | 25 | 350 | 30–80 | 40-45t |
| HC108 | 108 | 9 | 2.5–6.5 | 20.1 | 1500 | 25 | 350 | 30–80 | 40-45t |

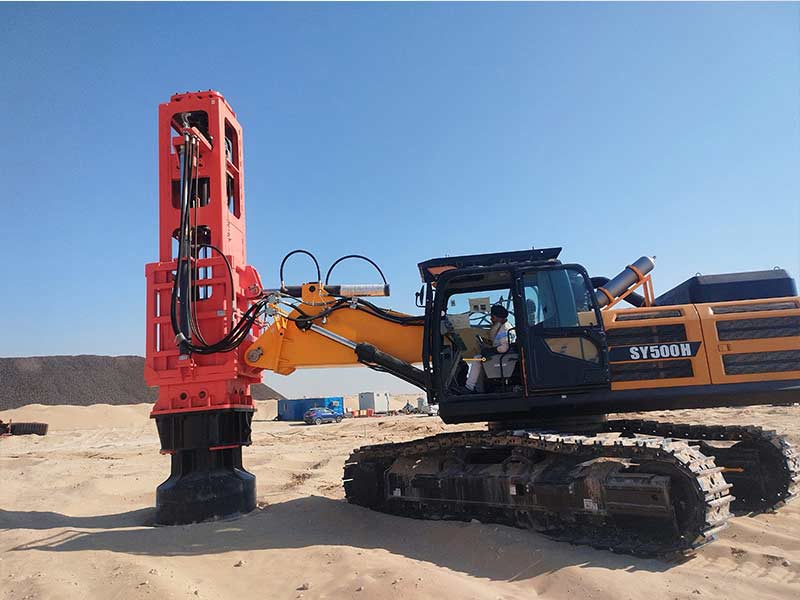

| HC150 | 150 | 10 | 4–8 | 21.5 | 1500 | 31.5 | 500 | 30–80 | 45-55t |
| HC180 | 180 | 12 | 4–8 | 23.8 | 1500 | 31.5 | 600 | 30–80 | 60+ t |
| HC210 | 210 | 14 | 4–8 | 26.2 | 1500 | 31.5 | 600 | 30–80 | 60+ t |

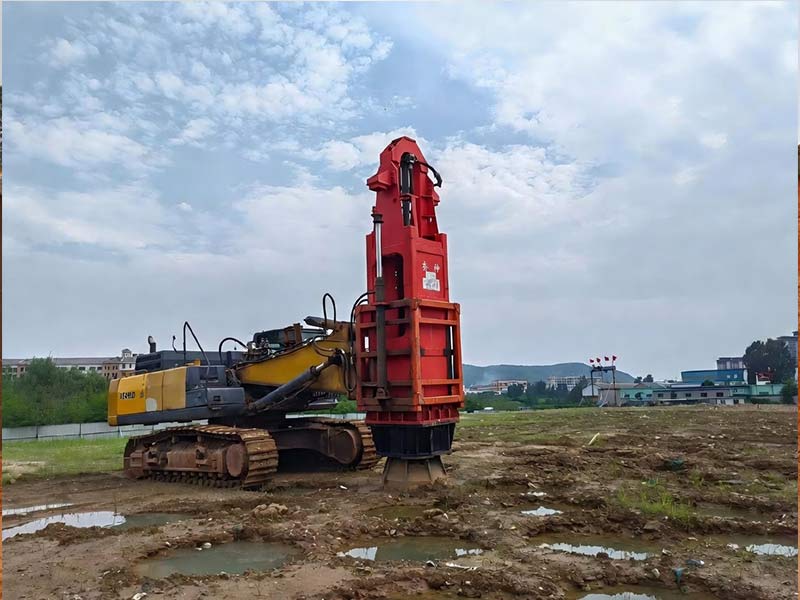

| HC240 | 240 | 16 | 5–9 | 28.9 | 2000 | 31.5 | 600 | 30–80 | 70+ t |
| HC300 | 300 | 20 | 5–9 | 34.5 | 2000 | 31.5 | 600 | 30–80 | 70+ t |
* Specifications are subject to change. Contact our technical team for project-specific recommendations and customized solutions.
From compact HC42 for tight sites to the powerful HC300 for deep foundation treatment — a complete range for every project scale.
HC Series RIC machines are deployed across a wide range of infrastructure applications worldwide.

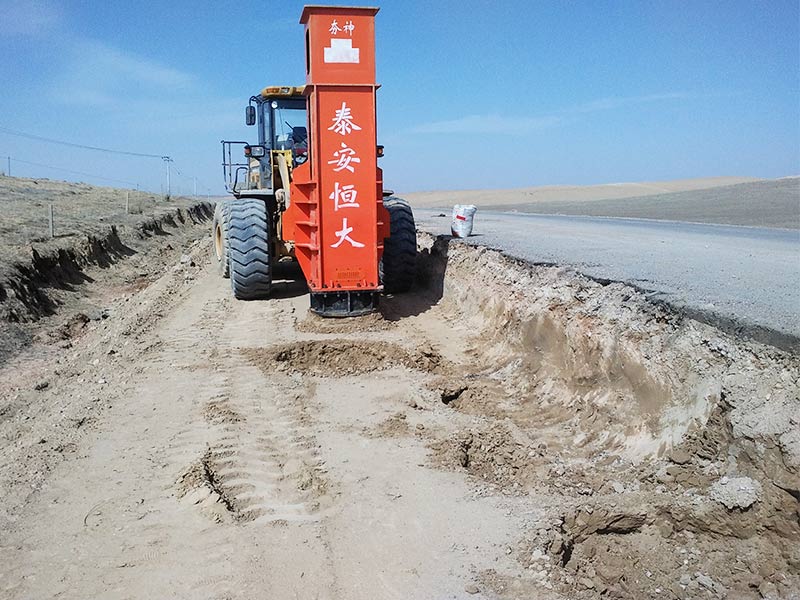

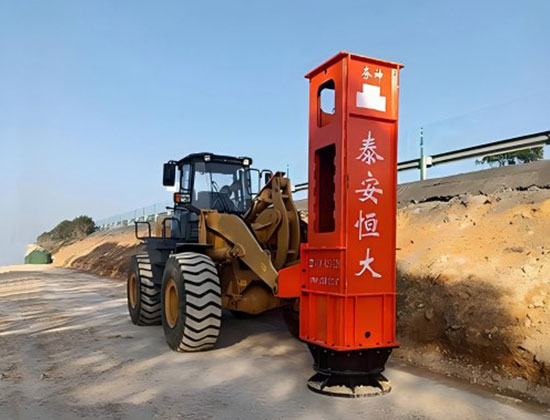

Rapid densification of subgrade soils for expressways and national roads, ensuring long-term structural stability and reducing post-construction settlement.

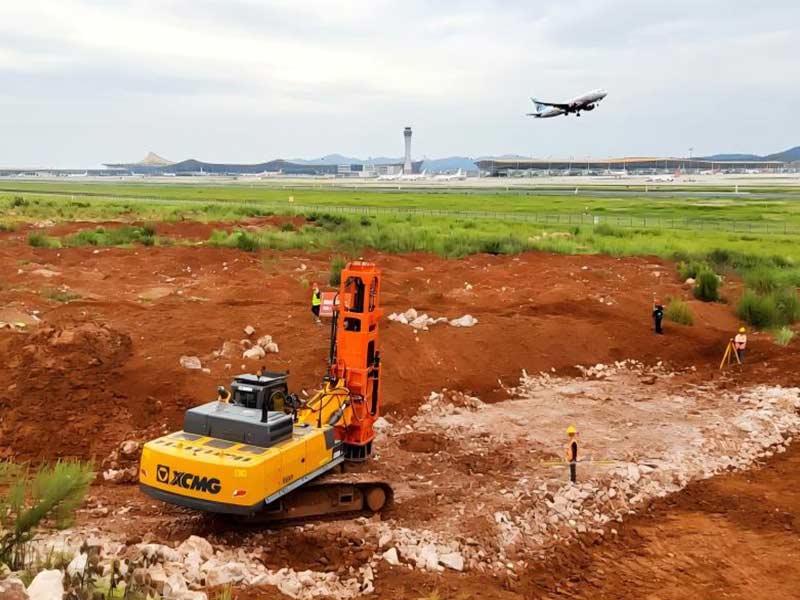

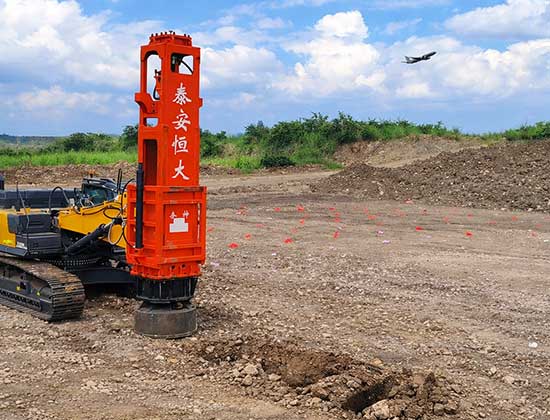

Deep ground improvement for runways and taxiways meeting strict aviation load-bearing requirements. Proven results in major international airport projects.

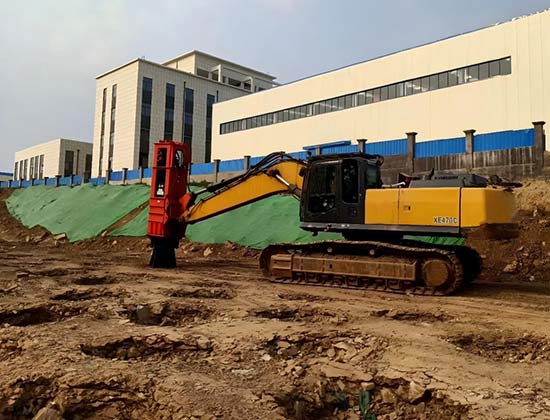

Uniform ground treatment for factories, warehouses and industrial parks. Efficient reinforcement of loose fills and reclaimed land to support heavy equipment loads.

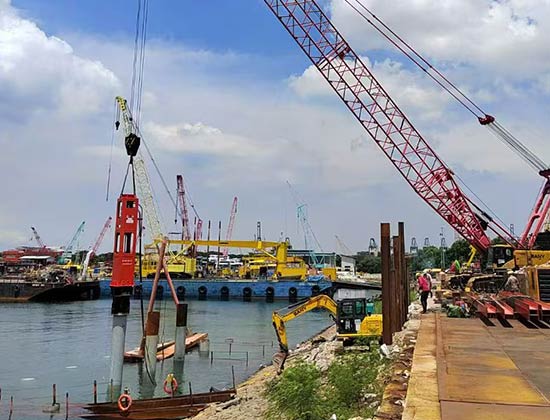

Consolidation of coastal and reclaimed land for port storage areas and container yards, withstanding heavy crane and vehicle loads in demanding marine environments.

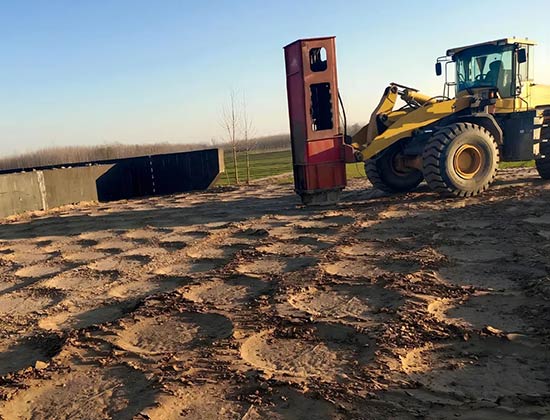

Effective densification of mining backfill materials and waste embankments. Dramatically reduces voids to prevent future subsidence and improve safety.

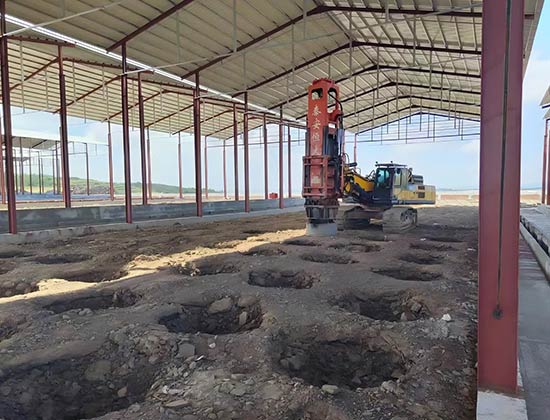

Treatment of soft clay and silt layers to increase bearing capacity. Widely used in coastal lowland development projects throughout Southeast Asia and the Middle East.

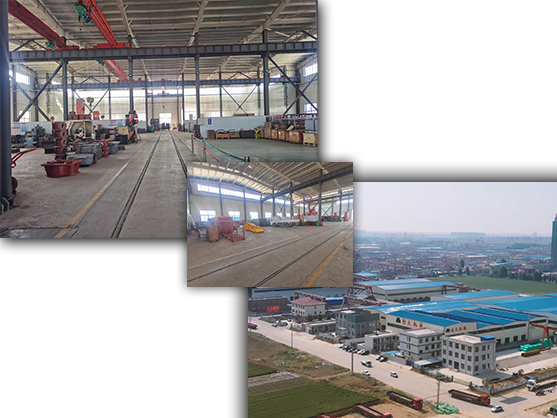

Taian Hengda Machinery is the pioneer and leading manufacturer of hydraulic Rapid Impact Compaction machines in China. Our chief designer, Cao Bin, is officially recognized as the inventor of hydraulic RIC in China — with almost 20 years of dedicated R&D experience.
Our machines have been successfully deployed in Saudi Arabia, UAE, Africa, Southeast Asia and European markets.

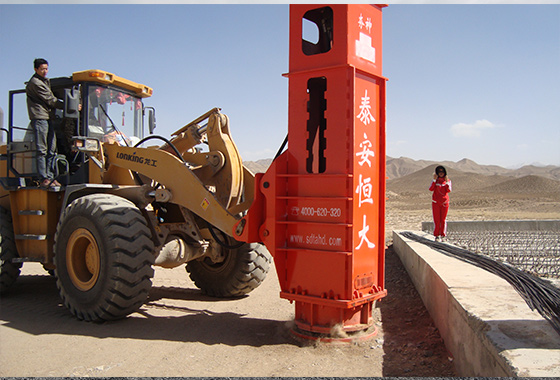

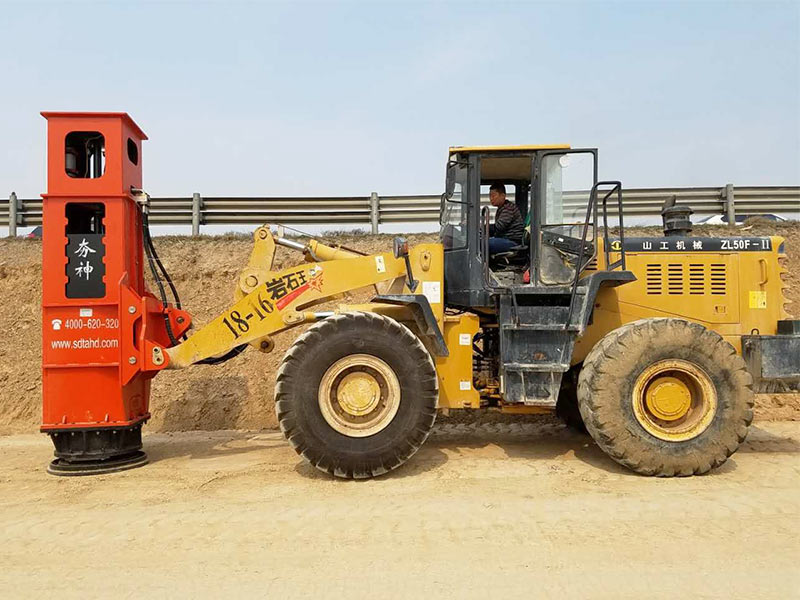

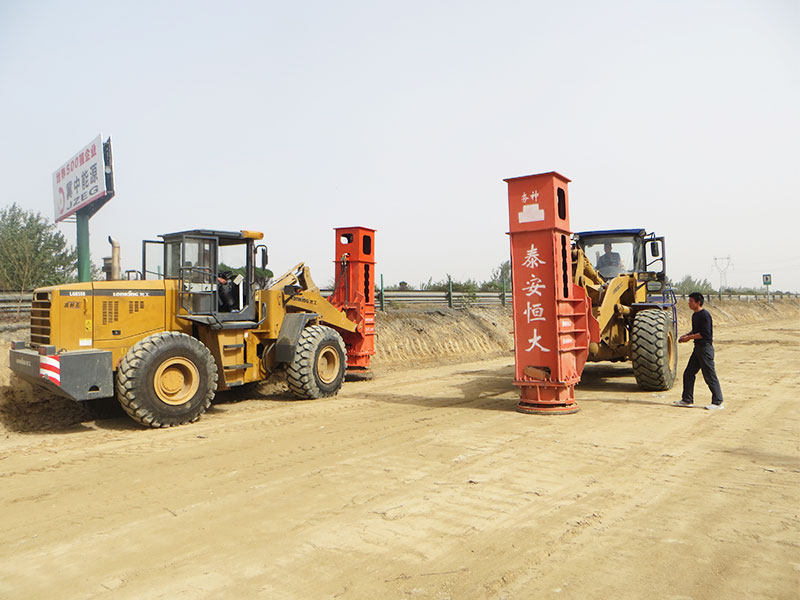

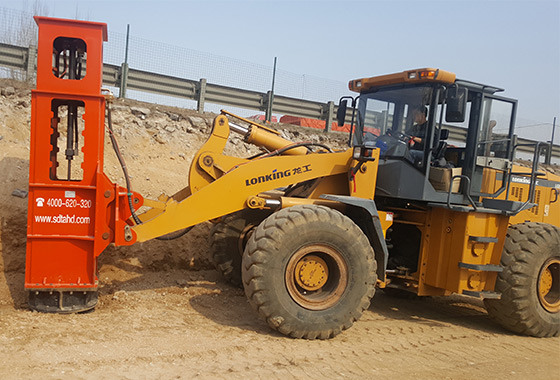

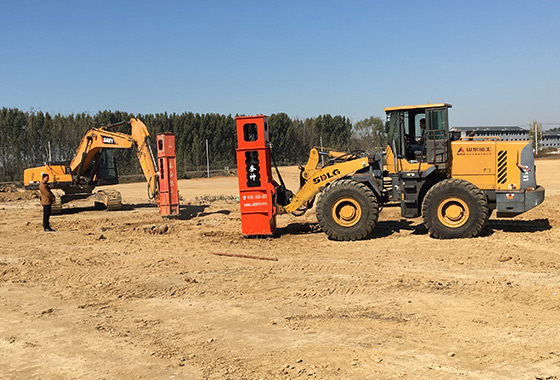

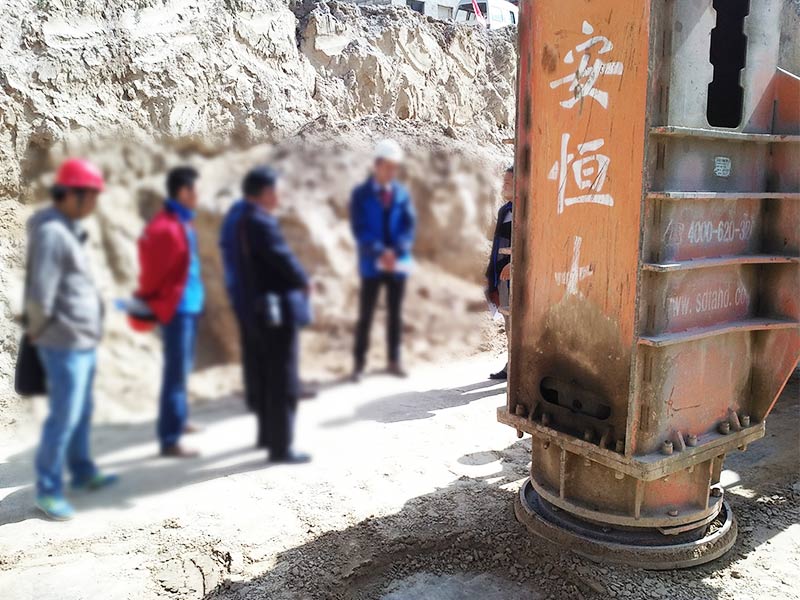

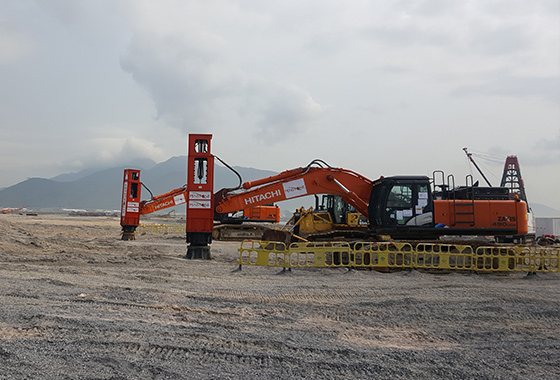

Watch our HC Series compactors at work on real construction sites — from highway subgrade treatment to deep foundation improvement.

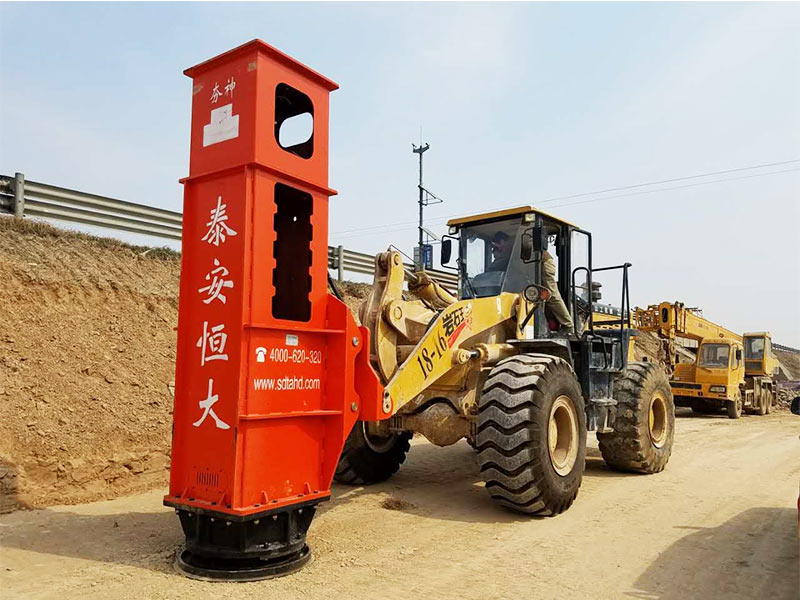

energy impact compaction can be used with loaders or excavators, and rely on the...

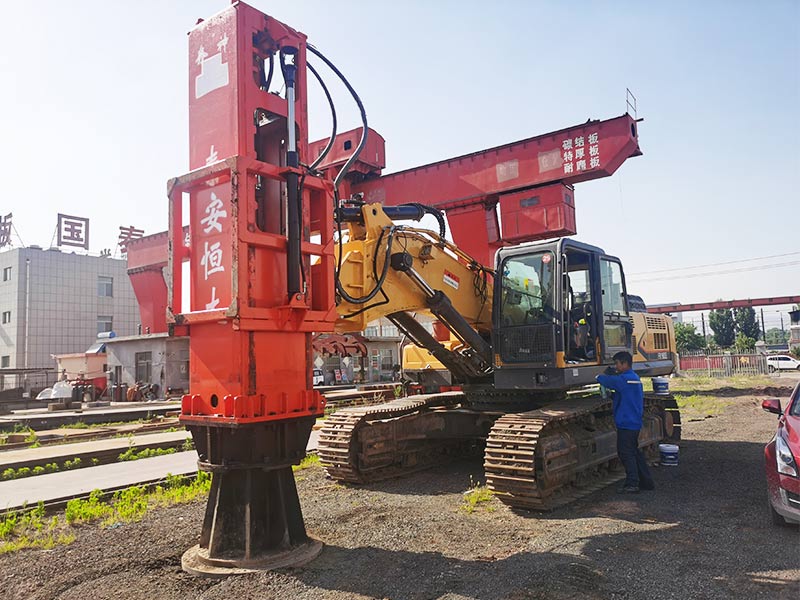

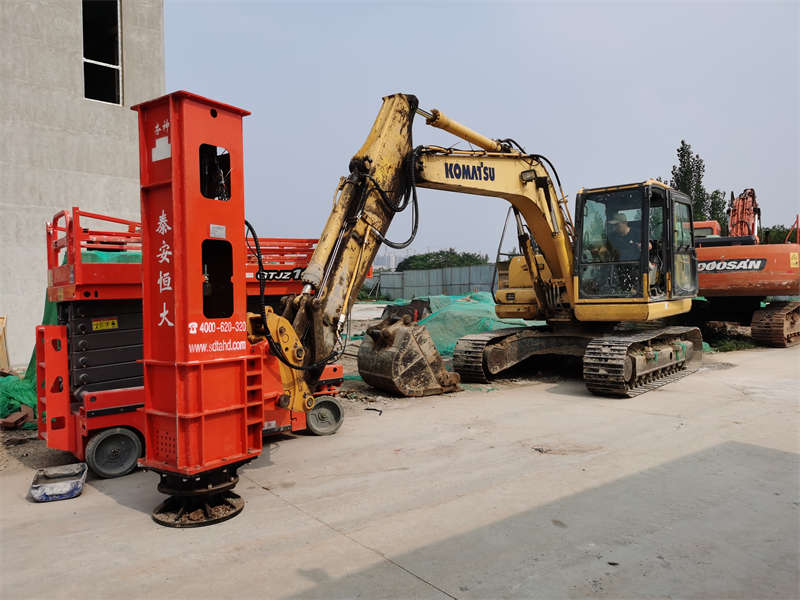

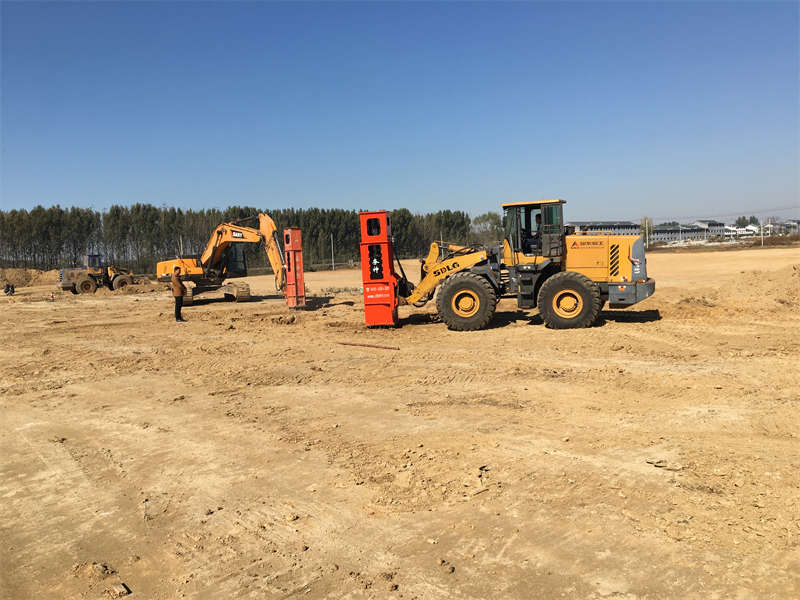

The rapid impact compaction can be installed on excavators and loaders for const...
Manufacturing the World’s Most Reliable and High-Efficiency Rapid Impact Compactors.
Dedicated to the R&D and Manufacturing of High-Performance RIC Units.
Leading Global Manufacturer of High-Speed Hydraulic Compactors: Superior Power & Reliability..
Our technical team is ready to help you select the right HC Series model for your soil conditions, project scale and equipment compatibility.
