Current Position: The models of Rapid Impact Compactions include hc04, HC08, hc12, hc16, Hc20, hc36, hc42, hc60, hc84 and hc150. Among them, hc36 and hc42 Rapid Impact Compactions are widely used. Please show the specific technical parameters in the figure below. Please refer to the table in the figure below for selection. Some parameters are shown in more detail. If you want to know more detailed parameters, you can leave a private message to me.

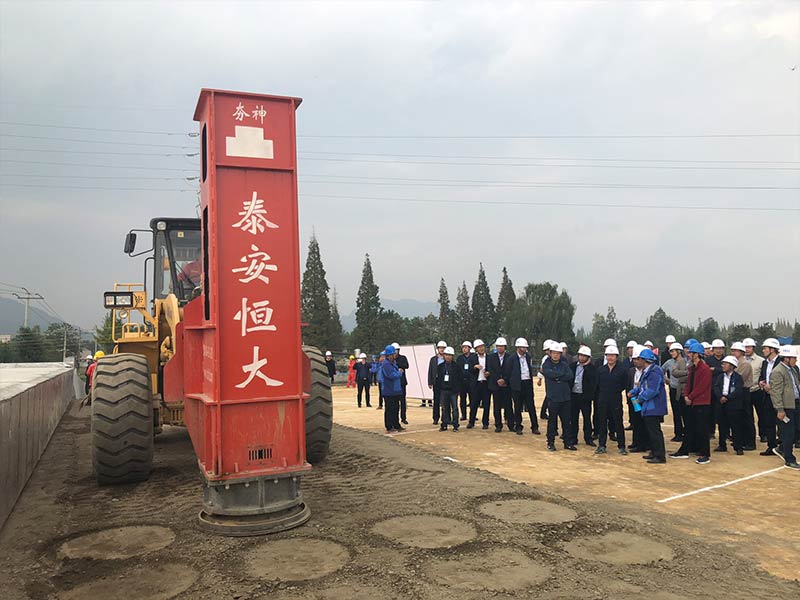

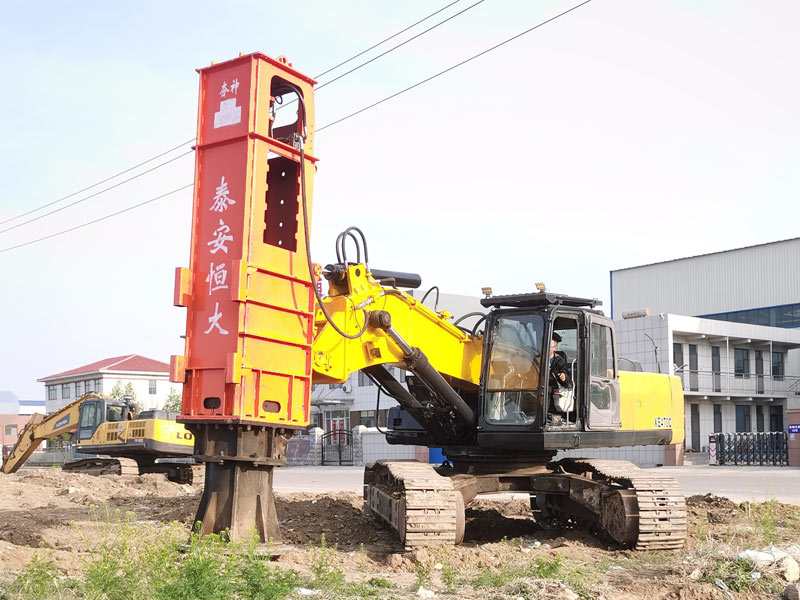

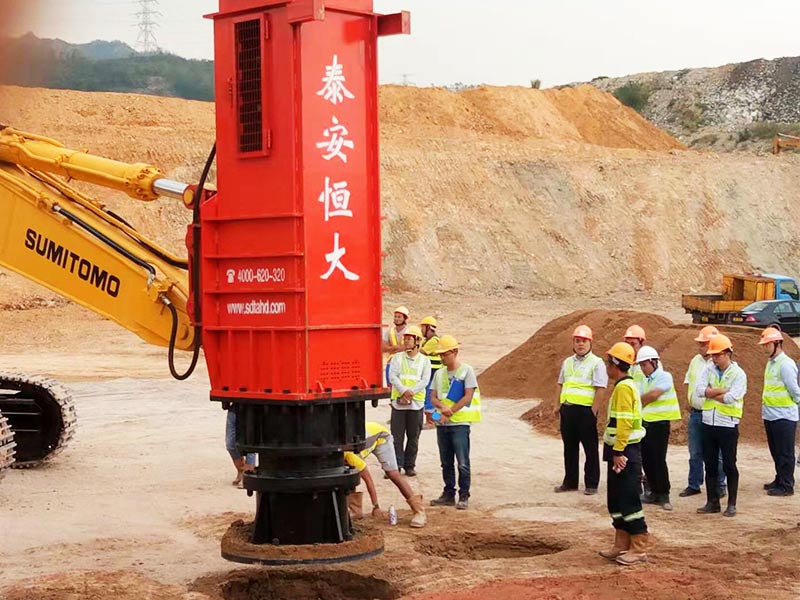

The Rapid Impact Compaction needs to be driven by excavators and loaders. The chart above does not show the appropriate models of excavators and loaders, so the following is a brief introduction to the size of excavators and loaders that various types of hydraulic compactors should be equipped with.
The working pressure of hc04 and HC08 is 16MPa, and the working flow is about 110l/min, which can adapt to 7-13t excavator or 1-2T loader; Hc12 and hc16 Rapid Impact Compactions have a working pressure of 16MPa and a working flow of about 130l/min, and are equipped with 18-30t excavators or 3-4t loaders; Hc20 working pressure 16MPa, working flow about 130l/min, suitable for 25-36t excavator or 4-5t loader; The working pressure of hc36/hc42 is also 16MPa, and the working flow is about 160l/min. It is driven by 30-40t excavator or 5-6t loader bearing; Hc60 has a working pressure of 21MPa, a working flow of about 350l/min, and is equipped with a 36-49t excavator or a loader of more than 8t; Hc84 Rapid Impact Compaction has a working pressure of 21MPa and a working flow of about 350l/min, which is suitable for 40-60t excavators or loaders above 12t; Hc150 has a working pressure of 32Mpa and a working flow of about 600l/min. It is suitable for arm changing of excavators above 70t or 49T.
HC series Rapid Impact Compaction can be used for excavators or loaders of various brands in the market. Its installation is very simple and easy to operate. Moreover, after-sales personnel will also come to the door for installation and commissioning after purchase, so there is no need to consider how to install it.
The effective depth of HC series Rapid Impact Compactions can reach 10m, with a minimum of 0.4m. In the construction of subgrade filling, hc36 Rapid Impact Compactions are mostly used, and hc42 is also used in a small part. HC series high-speed hydraulic tamping machine has 3 tamping gears, which is suitable for PLC Remote Control of tamping strength and frequency. After testing, after three gears and nine hammers are used to reinforce the transition area behind the bridge with 96% compactness, the settlement near the abutment is more than 100mm, most of which are 150 ~ 250mm, some are about 300mm, and the settlement of the normal crushing area is mostly about 100mm. The settlement of this part is 20 ~ 60mm after repeated rolling by heavy earth vehicles. After the normal layered filling of high fill subgrade, the settlement of 120 ~ 180mm per 2m reinforcement settlement is 120 ~ 180mm, The old subgrade of the widened road is excavated and reinforced after crushing, and the average settlement is 200 ~ 250mm. According to the above test data, we can choose a suitable Rapid Impact Compaction.
In a word, the Rapid Impact Compaction has a wide range of models, which can be applied to various large and small projects. When choosing, you should choose the appropriate Rapid Impact Compaction according to the actual construction requirements. If you don't know how to choose, you can leave a personal message to recommend the appropriate Rapid Impact Compaction for you.
