What are the 6 factors influencing soil compaction? - HENGDA RIC

There are seven factors to consider before compacting the so...

Update time:2022-07-19 11:46:502022-07-19 11:46:50
Views:326326

Details

There are seven factors to consider before compacting the soil on any project;
  • TYPE OF SOIL. The type of soil has a great influence on its compaction characteristics.

  • TYPE OF COMPACTOR.

  • LAYER THICKNESS / THICKNESS OF LIFT.

  • NUMBER OF ROLLER PASSES.

  • MOISTURE CONTENT.

  • CONTACT PRESSURE.

  • SPEED OF ROLLING.

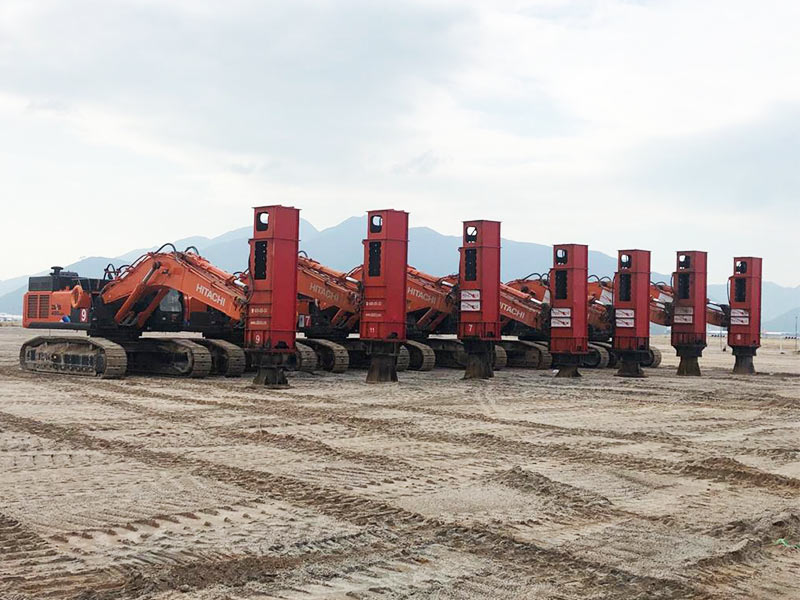

rapid impact compaction equipment

RIC can be used to improve bearing capacity and reduce liquefaction potential of loose soils. The compaction sequence is designed to work from the outside in, so that compaction of the lower zone soils occurs first followed by compaction of the upper zone. Data monitoring during the compaction process and the online display in the operator’s cab enables compaction control, an economic application of the compaction tool, and a work integrated quality control. The total impact depth of the impact foot, the number of blows, and the final settlement of the impact foot after a blow define the stopping criteria.

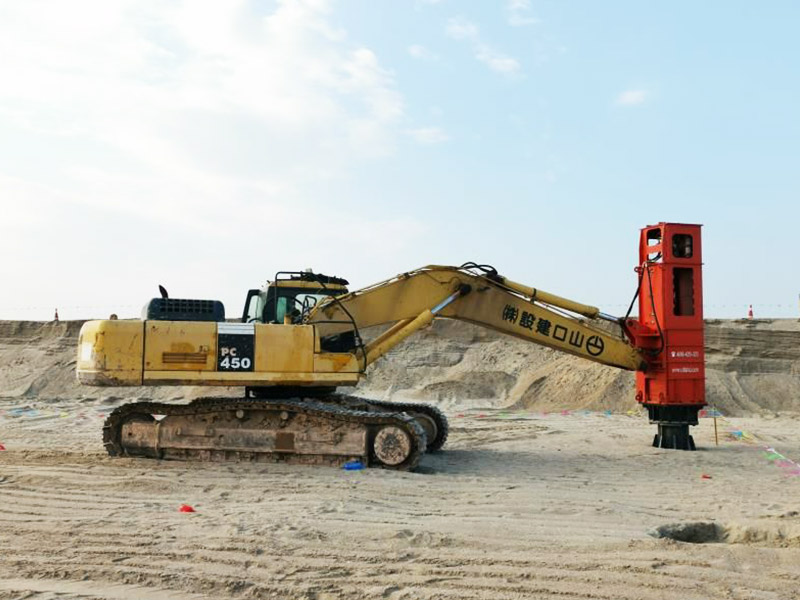

rapid impact compaction machine

This compaction energy brings the soil particles into a more densely packed structure. The compaction energy is transmitted safely and efficiently as the compaction foot remains in contact with the ground. No flying debris occurs during the compaction process. The hammering of the foot by the impact weight is the reason of the sub-soil compaction. Indeed, the huge amount of energy developed upon the hammering process and transmitted to the ground through the foot, pushes the backfilling material into a denser structure.

7t rapid impact compactor in Xiamen Airport

The compaction process can be optimized using an advanced GPS logging system. Using an advanced data logger located inside the cabin, the operator of the RIC rig can easily adjust the compaction energy in terms of the dropping height and the number of blows. He can also record the cumulative settlement, the settlement per blow and the applied energy.

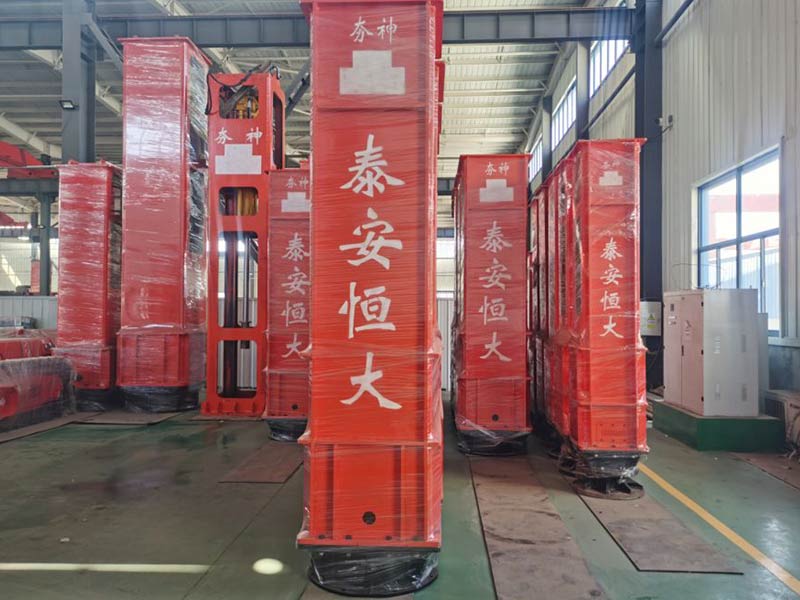

rapid impact compactor

The rapid impact compactor as a means of quickly repairing damage runways. It works by imparting dynamic energy through a falling 'drop-weight, which is dropped from a controlled height onto a patented foot.

With heights of 9 to 12 tones applied to the foot , the 'drop-weights' falls from relatively short height of only 1.2 meters at a rate of 40 to 60 times a minute.

Effective compaction depths vary with the nature of hte soil compacted, but depth of up to 8m have been reached with a 9t rig.

This results in The Rapid Impact Compactor transferring energy to the ground in a significantly more effective manner as the 'foot' stays in contact with the surface, never actually leaving the ground. It is because of this impacting sequence that we can ensure that the transfer of energy into the ground is carried out in the most efficient way possible.
