HENGDA is a manufacturer of rapid impact compactors. Its factory is located in Shandong Province, China. HENGDA rapid impact compactors have been widely used in the construction of major highways in China, as well as in Saudi Arabia, the United Arab Emirates and other countries. We also sell fast impact compactors to the world, such as South Africa, Türkiye, Israel, the Middle East and so on.

The applications of Rapid Impact Compaction

Surface consolidation: final treatment of upper strata following traditional dynamic.

compaction of the deeper layers of soil,

Foundations support: increases bearing capacity and reduces settlement,Floor slab support: stiffens soils and creates uniform bearing conditions,

Liquefaction mitigation: increases shear wave modulus to help raise the seismic siteclass,

waste stabillization: reduces waste volume and improves the properties of loose fills.

RIC has been successfully used to consolidate gravel, sands,silts，miscellaneous sand-silt-clay and industrial and mining waste fills. The ability to dump and compact sand orstone to depths of up to 6m simplifies remediation practices.

Rapid Impact Compaction is less expensive than other over-excavation and replacementtechniques.

Rapid Impact Compaction is a kind of compaction machine that uses machine gravity and variable force to compress soil. The soil compaction method can be called dynamic consolidation method or dynamic compaction method. The essence of dynamic compaction is to obtain greater dynamic resultant force through external force on the basis of static (gravity) compaction to achieve better compaction effect. At the same time, another characteristic of the Rapid Impact Compaction is that the high-frequency strike frequency will affect the movement of the compacted substrate particles, and directly affect the compactness of the compacted substrate. According to the soil compaction theory, the closer the vibration frequency is to the natural frequency of the rolled material, that is, when the vibration wave resonates with the soil, the better the compaction effect is. Rapid Impact Compaction has three different vibration frequencies, which can meet the compaction requirements of fill materials.

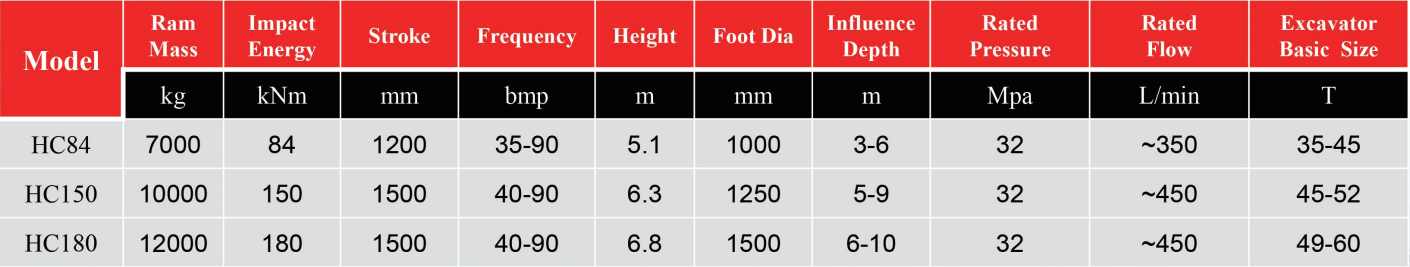

HENGDA rapid impact compaction manufacturers are operating in Asia, the Middle East, South Africa and other countries. At present, the models are HC84, HC150, HC180, HC210, etc. If you need to know more, you can send us an email.
